23 Inch Extra Wide LCD Monitor Signage Vertical Stretched LCD Monitor
Product Details:
| Place of Origin: | Guangdong ,China |
| Brand Name: | JCVISION |
| Certification: | CE,FCC,ROHS |
| Model Number: | JC23W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price to be negotiated |
| Packaging Details: | standard export package |
| Delivery Time: | 7-14 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000 per per month |
|
Detail Information |
|||
| CPU:: | RK3188,Quad-core, Cortex A9,1.6GHz | TF Card Slot:: | Built-in |
|---|---|---|---|
| Application:: | Indoor | Mini USB:: | Built-in |
| Input Voltage:: | AC100~240V 50 /60 HZ | Brightness:: | 400cd/m2 |
| Viewing Angle:: | 89 /89 /89 /89 (L/R/U/D) | ||
| High Light: | 23inch extra wide LCD monitor,400cd/m2 Extra Wide LCD Monitor,Stretched LCD Monitor |
||
Product Description

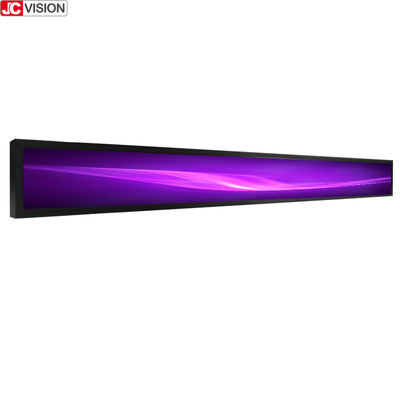

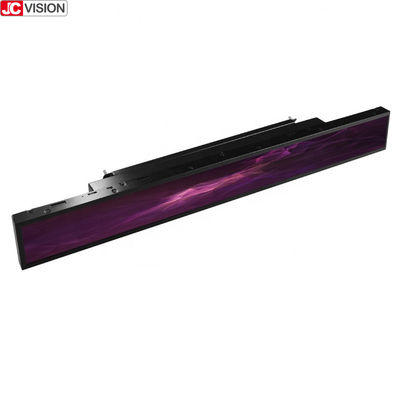

JCVISION 23 Inch Stretched Bar Lcd Digital Signage Vertical Advertising Display Screen
Features :
Shelf edge LCD display design for supermarket/retail shop shelf,replacement the traditional paper display. It suits for
60cm,90cm,120cm different shelf size.
1.High contrast, high brightness, greatly improving the layering of the picture, and better performance of details;Wide color
range.
2.Sync play or interaction play between different displays
3.Shelf edge LCD display with slim and narrow bezel, advertisements are displayed without blocking the sight of consumers, thus
creating a perfect shopping experience
4.Support WIFI, Mobile App.Optional Refee CMS software for content remote management.
60cm,90cm,120cm different shelf size.
1.High contrast, high brightness, greatly improving the layering of the picture, and better performance of details;Wide color
range.
2.Sync play or interaction play between different displays
3.Shelf edge LCD display with slim and narrow bezel, advertisements are displayed without blocking the sight of consumers, thus
creating a perfect shopping experience
4.Support WIFI, Mobile App.Optional Refee CMS software for content remote management.
Specifiation :
|
Panel info
|
Screen Size
|
23inch
|
35inch
|
47inch
|
|
Display Outline Size
|
597*60*16 mm
|
891*60*15 mm
|
1209*62*14 mm
|
|
|
Display Area(mm)
|
585(W) × 48(H)
|
878(W) ×48(H)
|
1196(W) × 49 (H)
|
|
|
Aspect Ratio
|
<3:1
|
|||
|
Resolution
|
1920X158
|
2880X158
|
3840X160
|
|
|
Brightness
|
400nits
|
500nits
|
500nits
|
|
|
Contract Ratio
|
3000:1
|
3000:1
|
1000:1
|
|
|
View Angle
|
89/89/89/89
|
|||
|
Android Version
|
Model No.
|
BA23WR
|
BA35WR
|
BA47WR
|
|
Operating System
|
Android OS
|
|||
|
RAM
|
1G
|
2G
|
2G
|
|
|
Flash
|
8G (NAND Flash)
|
|||
|
I/O Port
|
Micro USB/TF card slot
|
|||
|
Wi-Fi
|
802.11b/g/n
|
|||
|
Monitor Version
|
Model No.
|
JC23WR
|
JC35WR
|
JC47WR
|
|
Interface
|
HDMI-IN
|
|||
