JCVision 55-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JCVision |
| Certification: | CE ROHS |
| Model Number: | JC-55ILB |
| Document: | JCVision 55-inch Light Box ....pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 600 |
| Packaging Details: | CARTON BOX |
| Delivery Time: | 5-8WORK DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50 |
|
Detail Information |
|||
| Brand: | JCVision | Model: | HD-352C |
|---|---|---|---|
| Product Name: | 55" Wall Light Box Display | Screen Size: | 55 Inches |
| Backlight Type: | E-LED | Resolution: | 1920 × 1080 (Full HD) |
| Aspect Ratio: | 16:9 | Viewing Angle: | 89°/89°/89.6° (L/R/U/D) |
| Display Colors: | 16.7M | Brightness: | 300 ± 20 Cd/m² |
| Contrast Ratio: | 1200:1 | Response Time: | 6 Ms |
| Active Display Area: | 1209.60 × 680.40 Mm (H × V) | Chipset: | Hisilicon Hi3751V352F Quad-Core, Up To 1.0 GHz |
| GPU: | Mali-450 MP2 | Operating System: | Android 9.0 |
| RAM: | 2 GB | Storage: | 32 GB |
| Video Decoding: | Up To 1080P @ 60Hz | Image Rotation: | 0° / 90° / 180° / 270° Manual |
| USB Ports: | 2 × USB 2.0 | HDMI: | 1 × HDMI In |
| Ethernet: | RJ45 100M Ethernet | Wi-Fi: | 2.4G (802.11 B/g/n) |
| 4G Module: | Optional | Audio Out: | 1 × Audio Out |
| DC In: | 1 × DC In | Video Formats: | MPEG4, MPEG2, MPEG1, WMV, TS, MOV, AVI, FLASH |
| Audio Formats: | WAV, MP3, ACC | Image Formats: | JPEG, PNG, BMP, GIF |
| Speakers: | 2 × 8Ω 3W | Power Input: | AC 100–230V, 50/60Hz |
| Power Consumption: | ≤ 150W | Net Weight: | 22.7 Kg |
| Gross Weight: | 26.8 Kg | Carton Dimensions: | 1350 × 150 × 850 Mm |
| Product Dimensions: | 1238.40 × 709.20 × 29.20 Mm (including Wall Mount | Installation: | Wall-mounted (Landscape / Portrait) |
| Operation: | 24/7 Continuous Use | Special Features: | Plug And Play, Remote Control, Intelligent Split Screen, Scheduled Playback |
| Highlight: | 55-inch indoor digital signage display,E-LED backlit wall mount light box,wide viewing angle digital display |
||
Product Description
Product Name: JCVision 55-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
Product Description:

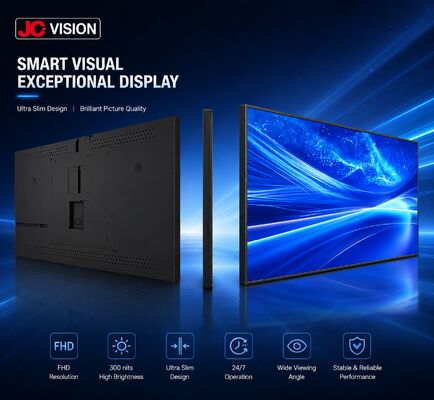

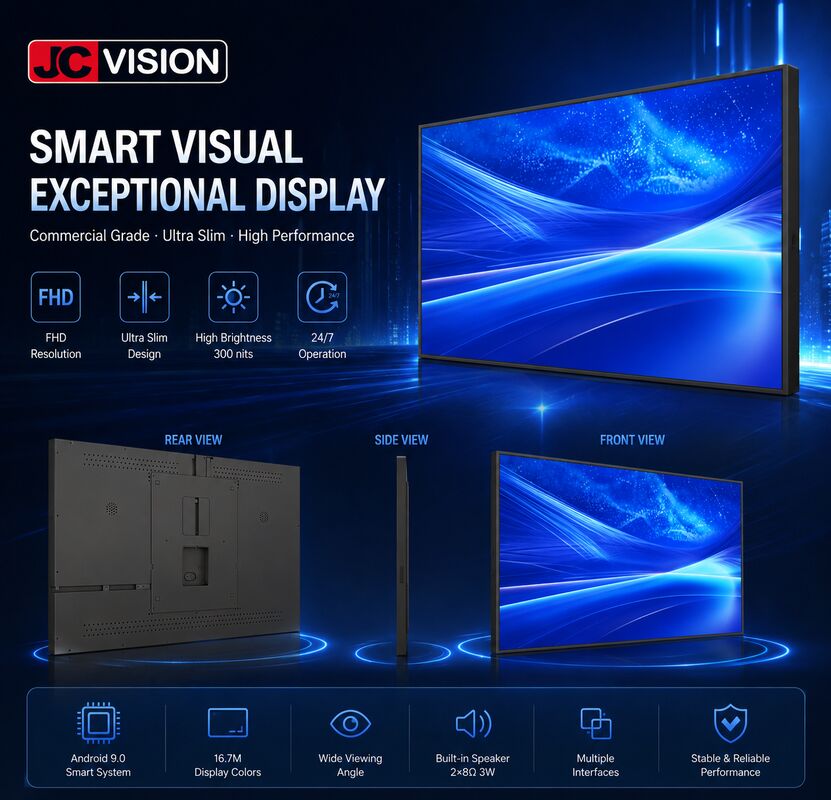

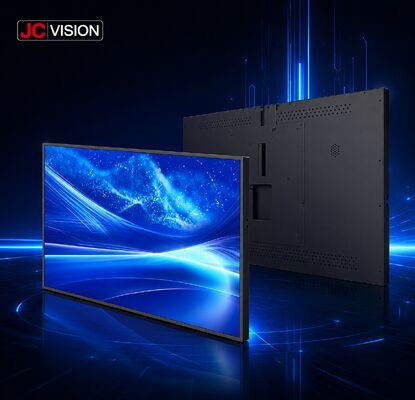

Make a bold statement with the JCVision 55-inch Wall Light Box (Square Edge), a premium indoor digital signage solution designed for large-scale visual communication in retail stores, hotels, restaurants, and public spaces.
The 55-inch E-LED backlit display features 1920×1080 Full HD resolution, 300 cd/m² brightness, 1200:1 contrast ratio, and 89° ultra-wide viewing angles (L/R/U/D), delivering clear and vivid visuals to a broad audience. The 6ms response time ensures smooth video playback.
Powered by the Hisilicon Hi3751V352F quad-core chipset (1 GHz) and Mali-450 MP2 GPU, it runs Android 9.0 with 2GB RAM and 32GB storage. It supports virtually all major video formats (MPEG4, WMV, MOV, AVI, etc.) and offers 1080P@60Hz video decoding.
Connectivity includes 2× USB, 1× HDMI IN, RJ45 Ethernet, and 2.4G Wi-Fi. An optional 4G module is available. The display supports both horizontal and vertical wall mounting, making it perfect for digital posters, menu boards, promotions, and informational signage.
Key Specifications:
![]()
-
Screen Size: 55 inch
-
Resolution: 1920×1080
-
Brightness: 300±20 cd/m²
-
Response Time: 6ms
-
OS: Android 9.0
-
RAM / Storage: 2GB / 32GB
-
Power: ≤150W
-
Dimensions (with wall mount): 1238.40 × 709.20 × 29.20 mm
-
Weight: 22.7 kg (net)
