JCVision 50-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JCVision |
| Certification: | CE ROHS |
| Model Number: | JC-50ILB |
| Document: | JCVision 50-inch Light Box ....pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 600 |
| Packaging Details: | CARTON BOX |
| Delivery Time: | 5-8WORK DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 50 |
|
Detail Information |
|||
| Brand: | JCVision | Model: | HD-352C |
|---|---|---|---|
| Product Name: | 50" Wall Light Box Display | Screen Size: | 50 Inches |
| Backlight Type: | E-LED | Resolution: | 1920 × 1080 (Full HD) |
| Aspect Ratio: | 16:9 | Viewing Angle: | 89° / 89° / 89° / 89° (L/R/U/D) |
| Display Colors: | 16.7M | Brightness: | 300 ± 20 Cd/m² |
| Contrast Ratio: | 1200:1 | Response Time: | 6 Ms |
| Active Display Area: | 1095.84 × 616.41 Mm (H × V) | Chipset: | Hi3751V352F Quad-Core, 1.0 GHz |
| GPU: | Mali-450 MP2 | Operating System: | Android 9.0 |
| RAM: | 2 GB | Storage: | 32 GB |
| Video Decoding: | Up To 1080P @ 60Hz | Image Rotation: | 0° / 90° / 180° / 270° Manual |
| USB Ports: | 2 × USB | HDMI: | 1 × HDMI In |
| Ethernet: | RJ45 100M Ethernet | Wi-Fi: | 2.4G (802.11 B/g/n) |
| 4G Module: | Optional | Video Formats: | MPEG4, MPEG2, MPEG1, WMV, TS, MOV, AVI, FLASH |
| Audio Formats: | WAV, MP3, AAC | Image Formats: | JPEG, PNG, BMP, GIF |
| Speakers: | 2 × 8Ω 3W | Power Input: | AC 100–230V, 50/60Hz |
| Power Consumption: | ≤ 150W | Net Weight: | 18.5 Kg |
| Gross Weight: | 21.8 Kg | Carton Dimensions: | 1240 × 150 × 770 Mm |
| Installation: | Wall-mounted (Landscape / Portrait) | Operation: | 24/7 Continuous Use |
| Special Features: | Plug And Play, Remote Control, Intelligent Split Screen, Scheduled Playback | ||
| Highlight: | 50-inch indoor digital signage display,E-LED backlit wall mount light box,wide viewing angle retail display |
||
Product Description

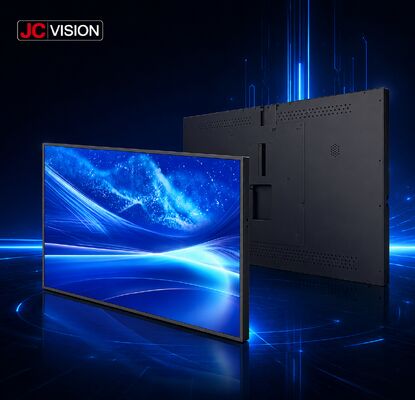

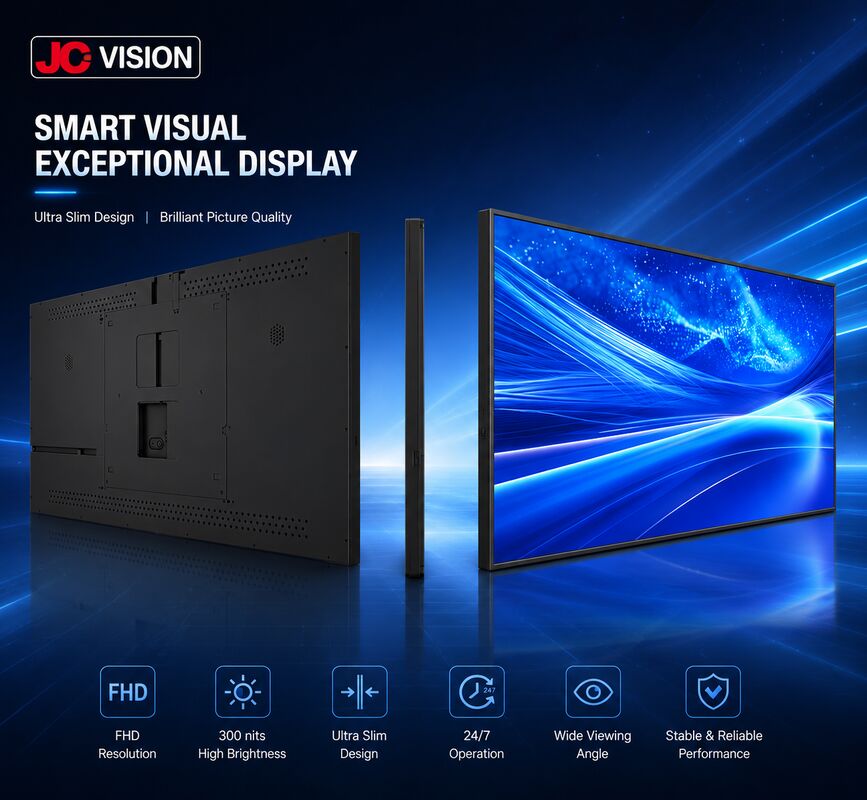

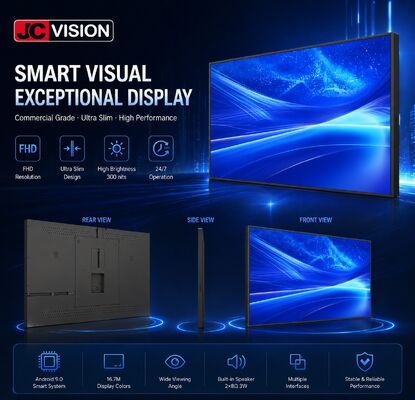

Product Name: JCVision 50-Inch Indoor Digital Signage Display – E-LED Backlit, Wide Viewing Angle, Wall Mount Light Box for Retail & Hospitality (HD-352C)
Product Description:
The JCVision 50-inch Wall Light Box (Square Edge) is a powerful indoor digital signage display built for high-impact visual communication in retail, hospitality, and corporate environments.
Its 50-inch E-LED backlit panel offers 1920×1080 Full HD resolution, 300 cd/m² brightness, 1200:1 contrast ratio, and 89° wide viewing angles (L/R/U/D), ensuring consistent image quality from every angle. The 6ms response time makes it suitable for dynamic video content.
Under the hood, the Hisilicon Hi3751V352F quad-core processor (1 GHz) and Mali-450 MP2 GPU drive the Android 9.0 operating system with 2GB RAM and 32GB onboard storage. It supports a wide range of video, audio, and image formats (MPEG4, MPEG2, MOV, AVI, JPEG, PNG, etc.) and handles 1080P video decoding.
Connectivity options include 2× USB, 1× HDMI IN, RJ100 Ethernet, and 2.4G Wi-Fi. An optional 4G module is available for remote content management. The unit supports both horizontal and vertical wall mounting, offering flexibility for digital posters, menu boards, and advertising displays.
Key Specifications:
-
Screen Size: 50 inch
-
Resolution: 1920×1080
-
Brightness: 300±20 cd/m²
-
Response Time: 6ms
-
OS: Android 9.0
-
RAM / Storage: 2GB / 32GB
-
Power: ≤150W
-
Dimensions (with wall mount): 1123.80 × 644.00 × 29.20 mm
-
Weight: 18.5 kg (net)
