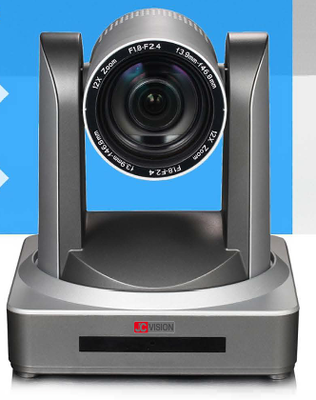

JCVISION Full HD PTZ Camera
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | JCVision |
| Certification: | ROSH CE |
| Model Number: | JC-VC5112A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Digital Zoom: | 10X | Minimum Illumination: | 0.5Lux (F1.8, AGC ON) |
|---|---|---|---|
| DNR: | 2D & 3D DNR | White Balance: | Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus: | Auto/Manual/One Push Focus | Aperture/Electronic Shutter: | Auto/Manual |
| BLC: | ON/OFF | WDR: | OFF/ Dynamic Level Adjustment |
| Video Adjustment: | Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, Gamma Curve | SNR: | >55dB |
| Sensor: | 1/2.8 Inch High Quality HD CMOS Sensor | Effective Pixels: | 16: 9, 2.07 Megapixel |
| Interface: | USB2.0, USB3.0, HDMI, LAN, RS232(input); | ||
| Highlight: | Full HD PTZ camera for digital signage,Indoor PTZ camera with Full HD,PTZ camera for indoor displays |
||
Product Description
-
Full HD Image Quality
-
1/2.8-inch high-quality CMOS sensor
-
Resolution up to 1920×1080, frame rate up to 60 fps
-
H.264/H.265 encoding, suitable for low-bandwidth environments
-
-
Intelligent Image Processing
-
Trinity auto-focus technology (AWB, AE, AF)
-
Automatically adapts to environment for optimal image quality
-
Supports DNR, WDR, BLC, and other image enhancement features
-
-
Multiple Interface Support
-
Supports HDMI, SDI, USB, wired/wireless LAN (5G WiFi optional)
-
SDI supports transmission up to 100 meters in 1080P60 format
-
-
Multiple Optical Zoom Options
-
Offers various lens options: 5X, 10X, 12X, 20X, 30X
-
83.7° ultra-wide angle with no distortion
-
-
High-Performance Wireless Transmission
-
4×4 MIMO and beamforming technology
-
Max transmission rate of 300 Mbps, range up to 300 meters (outdoor, unobstructed)
-
-
Flexible Control Methods
-
Supports infrared and 2.4G wireless remote control
-
Remote signal pass-through for easy backend integration
-
-
Powerful PTZ Performance
-
Pan range: ±170°, tilt range: -30° to +90°
-
Supports 255 presets (10 accessible via remote control)
-
-
Wide Range of Applications
-
Tele-education, lecture recording, webcasting, video conferencing, remote training, telemedicine, interrogation, and emergency command systems
-
-
Multiple Color Options
-
Available in Black / White / Gray
-
-
Brand and Support
-
Complete package included (power supply, control cables, remote control, manual)
-
Company based in Shenzhen with technical support and after-sales service
-
