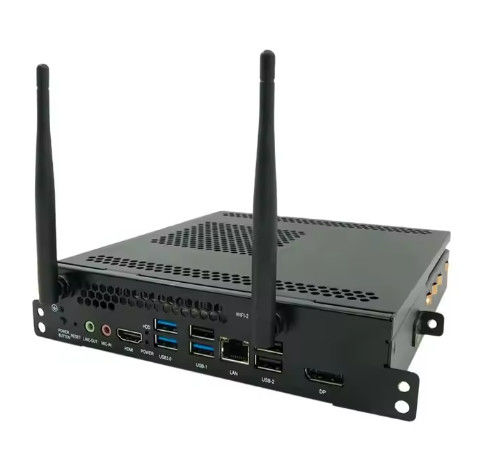

Education Office i3 i5 i7 4k New Design 4K Display OPS Mini PC
Product Details:
| Place of Origin: | China |
| Brand Name: | JCVISION |
| Certification: | CE, FCC,Rohs |
| Model Number: | JC-PCi5-12mini |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD298-698 |
| Packaging Details: | carton |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| CPU: | 12th Gent Intel ® Core ™ Processor | Memory: | 2 X SO-DIMM DDR4 2666 MHz 4 GB Memory |
|---|---|---|---|
| Graphics Card: | Intel® Iris® Xe Graphics | Audio: | Cmedia USB Audio (HS100B) |
| System: | Windows 8/10 /11 , Linux | Operating Temperature: | 0°C~ 45°C |
| Highlight: | i5 OPS Mini PC,i7 OPS Mini PC,4k OPS Mini PC |
||
Product Description
| Standard parameters | CPU | 12th Gent Intel ® Core ™ Processor | ||
| Memory | 2 x SO-DIMM DDR4 2666 MHz 4 GB memory | |||
| storage | 1*M.2 2280 interface supports NVMe and SATA dual protocols ( manual switching required ) | |||
| 1* 2.5" SATA HDD/SSD | ||||
| graphics card | Intel® Iris® Xe Graphics | |||
| show output | HDMI/DP/Type-c supports synchronous and asynchronous three displays | |||
| network | wired network | Intel I226-V Gigabit Ethernet | ||
| Wi-Fi | 1*M.2 2230 for Wifi+BT | |||
| Audio | Cmedia USB Audio (HS100B) | |||
| I/O port | Front interface | 1*HDMI 2.0 out 1* DP1.4 out 2 * USB3.0 2*USB2.0 1 * RJ45 1*P ower 1* Reset 1* Line out 1*M ic in 1*Type-C (USB3.0+ video transmission) 1*Power LED 1*HDD/SSD LED 2*WIFI/BT ANT | ||
| Rear interface | ||||
| 1 * JAE 80PIN : HDMI2.0 out(4K/60Hz) | ||||
| Power parameters | power input | 19V4.7A | ||
| Size parameters | Host size ( mm ) | Bare metal : 118 *180* 30 | Packing box size: 282*257*79mm | |
| Weight( kg ) | Net weight ≈ 1.2 Kg gross weight ≈ 1.4Kg | |||
| temperature and humidity | Operating temperature | 0°C~ 45°C | ||
| Storage temperature | -40°C~ 80°C | |||
| Working humidity | 10% - 95% @40°C non-condensing | |||
| system | Support operating system | Windows 8/10 /11 , Linux | ||
