Multi Touch Smart Interactive Flat Panel Conference Digital Interactive Whiteboard
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | JCVISION |
Certification: | CE FC ROSH |
Model Number: | JC-T86K |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 unit |
---|---|
Price: | EXW USD3680 |
Packaging Details: | Carton inside, Wooden outside. |
Delivery Time: | 3-7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 10000unit/M |
Detail Information |
|||
Size: | 55'' 65'' 75'' 86'' 98" 110'' | Color: | Black /white/Optional |
---|---|---|---|
Application: | Education/ Conference/business Demostration | Screen Type: | LCD |
Warranty: | 3 Years | Uselife: | >60000hrs |
High Light: | 450cd/m2 smart interactive flat panel,Multi Touch smart interactive flat panel,Conference Digital Interactive Whiteboard |
Product Description

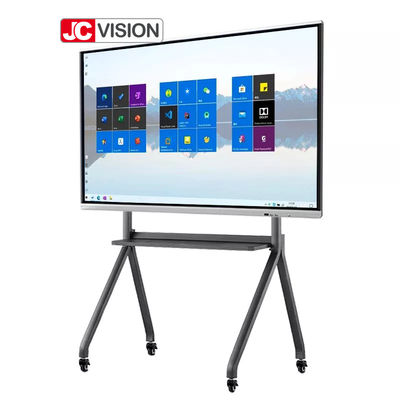

JCVISION 55 65 75 86 110 inch multi-touch conference class teaching smart interactive flat panel digital whiteboard
Model | |
Brand | JCVISION | JCHUB |
Name | All-in-one teaching conference machine |
LCD Panel | |
Size | 55/65/75/86/98/100 inch |
Panel Brand | LG,BOE(gauge A screen) |
type | TFT-LCD S-PVA |
Resolution | 3840 × 2160 (UHD) @60hz |
Brightness | 450cd/m² |
Ratio contrast | 2000:01:00 |
Visual Angle (horizontal/vertical) | 178°/178° |
Response time | 8ms |
Visual area(mm) | 1895(W)×1066(H) mm |
Color gamut (NTSC) | 72% |
Backlight | WLED |
display scale | 16:09 |
Response time | <8ms |
life | >60000H |
Infrared touch characteristic | |
Touch the specifications | Infrared touch frame |
glass | 4mm tempered glass |
Glass transmittance |
> 88% (higher transmittance depends on glass surface treatment technology such as AR/AG) |
Object induction number (IR) | Touch at 20 |
Number of infrared induction lines (W D) | 32767 × 32767 |
Positional accuracy | More than 90% of the touch area is 2mm |
The interface definition | USB 2.0(Full speed) |
Touch the strength | Zero pressure touch |
The light resistance | It has light resistance |
Induction life | 6 million times |
The response time | <8ms |
The power supply mode | Full duplex usb-powered DC +5V up to 500mA |
