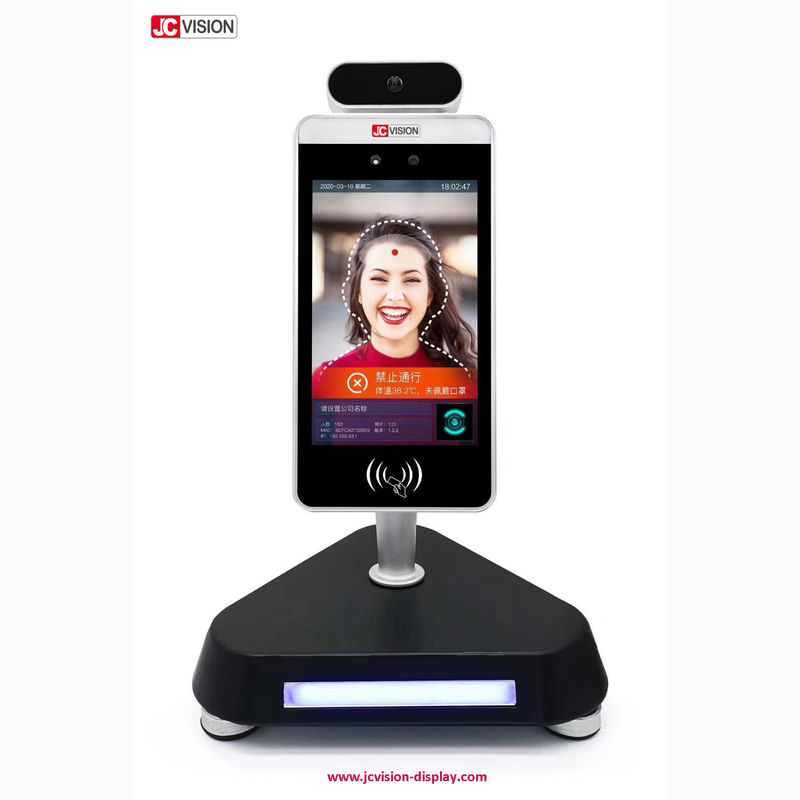

8inch AI Facial Recognition , IPS Body Temperature Detection Panel Smart Pass Solution
Product Details:
| Place of Origin: | SHENZHEN, CHINA |
| Brand Name: | JCVISION |
| Certification: | CE/FCC |
| Model Number: | JC-FRB-T80 Pro |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Application: | Indoor | Brightness: | 200cd/m2 |
|---|---|---|---|
| Viewing Angle: | 170°/170°(H/V) | Contrast Ratio: | 800:1 |
| Screen Resolution: | 1280*800 IPS | Response Time: | 8 (ms) Approximately |
| Display Type: | IPS | Operation System: | Android |
| Life Time: | > 50000 (hours) | Power Supply: | DC12V (±10%) |
| Screen Size: | 8inch | ||
| High Light: | 8inch AI Facial Recognition,IPS AI Facial Recognition,1280*800 AI Facial Recognition |
||
Product Description
JCVISION 8inch AI Facial Recognition Body Temp Detecting Android Panel Smart Pass Solution
Features
1. 8inch IPS panel
2. Quad core RK3288 Android 7.1 system, 2G+8G memory, with wifi
3. Facial recognition camera inbuilt,support 3W faces
4. German Brand Heimann temperature detector inbuilt
5. Server software with staff working shift setting and attendance control setting to be provided for free.
6. Support secondary software development based on API document
7. Various kind of installation:wall mount,desk top stand,floor stand (110cm,65cm,138cm,adjustable stand from 60 to 120cm)
8. 1.1M height floor stand can be with an 1200Ml auto hand sanitizer dispenser,liquiad nozzle,fixing via screw very stable.
9. Support logo customized on floor stand, support boot logo customized, support QR code display standy on screen
10.Support SDK for develope your own software
Specification
| Resolution | 1280*800 IPS panel | |||||
| Display area | 107.64(W)×172.224(H) mm | |||||
| Brightness | 200cd/m2 | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 800:1 | |||||
| View angle | 170°/170°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | DC12V (±10%) | |||||
| Power Consumption | 14W | |||||
| Camera | 2.0Mpx, two-eye dynammic camera | |||||
| Focus distance | 50-150cm | |||||
| White balance | Automatic | |||||
| LED flash | LED and dual IR LED light compensation | |||||
| Speaker | 2.5W/4R | |||||
| Face recognition | Support several face detection together | |||||
| Face recording database | 30,000 at most | |||||
| 1:N face detection | Suport | |||||
| 1:1 face matching | Suport | |||||
| Stranger dection | Suport | |||||
| Face detection distance configuration | Support | |||||
| UI interface configuration | Support | |||||
| Remote upgrade | Support | |||||
| Display interface | Includes device management, personnel/picture management, records query | |||||
| Deployment model | Support public cloud, private, local area network, standalone | |||||
| Body temperature testing | Support | |||||
| Distance support | 1 Meter | |||||
| Testing precision | ≤ ±0.2℃ | |||||
| Testing range | 10℃~42℃ | |||||
| Thermal imaging field of view | 32 X 32℃ | |||||
| Automatic pass | Support, for normal body temperature | |||||
| Automatic alarm | Support, for abnormal body temperature, can be pre set | |||||
| Waterproof | IP65 | |||||
| Installation | Gate machine, height can be adjusted | |||||
| Photo Formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio Formats | MP3,WAV,WMA | |||||
| Video Format | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V | |||||
| Shell Material | Aluminum+Metal | |||||
| Bare diemension | 238.24*128*25mm, N.W.: 1.45kg | |||||
| Touch Type | NO | |||||
| Normal Working Temperature | -10°——60° | |||||
| Normal Storage Temperature | -20°——60° | |||||
| Accessory | Cable, bracket | |||||
| OSD Language | English, Chinese, French, German, Italian, Spanish,Arabic | |||||
| CPU | RK3288 Quadcore Cortex-A17 1.8GHz | ||||||||
| RAM | DDR3 2G | ||||||||
| Memory | 8G | ||||||||
| Internet connetcion | Wifi, RJ45 | ||||||||
| System | Android7.1 | ||||||||
| USB port | OTG*1, USB HOST*1 | ||||||||
| RS232 | 1 | ||||||||
| Relay output | 1 signal output for door openning | ||||||||
| Wiggins interface | 26/34 output*1, 26/34 input | ||||||||
| Upgrade | Support Uboot upgrade | ||||||||
