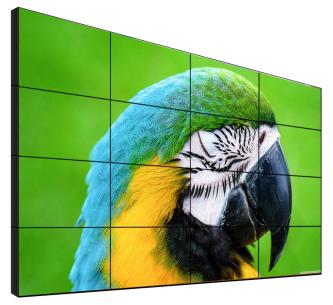

46 Inch LCD Video Wall Display with 1920 by 1080 Resolution 178 Degree Viewing Angle Anti Glare Surface and Consumption for Energy Saving
Product Details:
| Place of Origin: | China |
| Brand Name: | JCVision |
| Model Number: | DV460FHM-NV0 |
|
Detail Information |
|||
| Highlight: | 46 inch LCD video wall display,1920 by 1080 resolution video wall,anti glare LCD video wall |
||
|---|---|---|---|
Product Description
| Video Wall Solution Diagram 46inch | ||||||||||
 |
||||||||||
| Panel Specifications | ||||||||||
| Active Screen Diagonal | 46" | |||||||||
| Pixel Pitch(WxH) | 0.49005 (H) × 0.49005 (V) mm | |||||||||
| Panel Dimension(WxHxD) | (H) × 0.49005 (V) mm Active Area | |||||||||
| Total Bezel Width | 3.5mm | |||||||||
| Aspect Ratio | 16:9 | |||||||||
| Physical Resolution | 1920*1080 | |||||||||
| Backight System | D-LED | |||||||||
| Luminance(nits) | 500cd/㎡ | |||||||||
| Contrast | 4000:1 (typ.) | |||||||||
| Input & Output ports | HDMI IN*1, USB IN*1, RS232 IN*1, IR IN*1, RS232 OUTPUT*2, Audio*1, VGA*1 | |||||||||
| Viewing Angle | 178°/178° (H/V) | |||||||||
| Display Colors | 8Bit,16.7M | |||||||||
| Refresh Rate | 60Hz | |||||||||
| Response Time | <=6ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| MTBF | > 100,000 h | |||||||||
| Surface | Anti-glare | |||||||||
| Standby Power Consumption | <3W | |||||||||
| Maximum Power Consumption | <=158W | |||||||||
| Power Supply | AC100~240V 50/60 HZ | |||||||||
| Cooling | Low noise fans | |||||||||
| Heat Dissipation | 819 BTU/h (max) | |||||||||
| Working Time Capacity | 7x24x365hours | |||||||||
| Application Area | Indoor/Semi Outdoor | |||||||||
| Working Temperature | 0℃～55℃ | |||||||||
| Working Humidity | 0.85 | |||||||||
| Storage Temperature | -20-60°C | -4-140°F | |||||||||
| Storage Humidity | 85% non-condensing | |||||||||
