Nvidia Chipset 24" Outdoor Waterproof IP55 Self Service Payment Kiosk Quick Details of outdoor touch screen payment terminal
Product Details:
Get Best Price Contact Now|
Detail Information |
|||
| Highlight: | 24-inch outdoor payment kiosk,waterproof self-service terminal,IP55 touch screen kiosk |
||
|---|---|---|---|

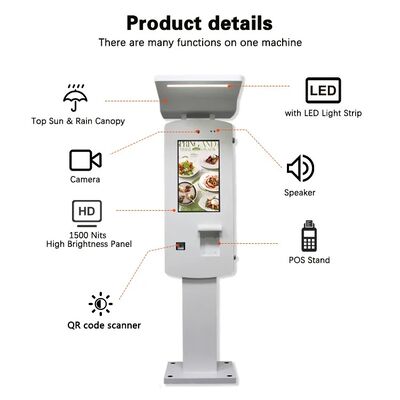

Product Description
- 24inch full HD 1080p resolution.
- IP55 waterproof with air cooling fans inside.
- Has 10 points capacitive touch screen.
- 2pc samples ready to ship.
- Has Win 11 IOT system with Nvida chipset.
- White color with canopy on top, LED light inbuilt.
- Has 8.0mpx camera inbuilt.
- Has QR code scanner and POS hole for buyer to install their own POS locally.
Specification of 24inch outdoor waterproof self service payment kiosk :
| Resolution | 1920*1080 | |||||
| Screen size | 24 inch | |||||
| Display area | 527*296 mm | |||||
| Glass | AR minus reflection glass 5 mm, light transmittance 97%, reflectivity is less than 3%, laminating,explosion-proof membrane surface | |||||
| Brightness | 1500cd/m2 brightness, with brightness sensor | |||||
| Number of Color | 16.7M | |||||
| Response time | 8 (ms) approximately | |||||
| Contrast | 1000:1 | |||||
| View angle | 178°/178°(H/V) | |||||
| Life Time | > 50000 (hours) | |||||
| Power Supply | AC 110V~240V,50/60HZ, | |||||
| Electronic part | Electricity leaking protection, lightning protection | |||||
| Shell Material | Galvanized steel+outdoor power painting, anti-corrossion for more than 10years | |||||
| Heat Dissipation | Air-cooling fans inbuilt, with patent fully intelligent temprature control technology | |||||
| Speaker | 10W*2 | |||||
| Power Consumption | 24W, Industrial-grade power board, brightness auto-adjustment to lower power consumption | |||||
| Photo formats | JPEG ,BMP ,GIF ,PNG | |||||
| Audio formats | MP3,WAV,WMA | |||||
| Video formats | MP4,AVI,DIVX,XVID,VOB,DAT,MPG,MPEG,RM,RMVB,MKV,MOV,HDMOV,M4V, | |||||
| Dimension | TBC | |||||
| Wooden box packing | TBC | |||||
| Color | White | |||||
| Cover | Has cover on top, has LED strip inbuilt | |||||
| LED light on both sides | No | |||||
| POS | Prepare POS bracket and buyer install POS locally | |||||
| Camera | 8.0mpx, inbuilt | |||||
| 80mm Thermal printer | No | |||||
| Touch Type | 10-point PCAP touch screen | |||||
| QR code scanner | Yes, inbuilt | |||||
| Normal Working Temperature | -20 to 45 Celsius degree | |||||
| CPU | i5-12th generation | |||||
| GPU | GTX 1650 | |||||
| Memory | DDR4 16G | |||||
| SSD | 512G | |||||
| Internet connection | WIFI, LAN | |||||
| System | Win 11 ioT | |||||
| Interface | HDMI out*1,USB *4 ,LAN *1, VGA*1 | |||||
Application
This solar outdoor self-service kiosk is widely used in various outdoor catering and commercial scenarios:
- Drive-thru lanes of fast‑food chains, providing 24h unattended ordering service
- Outdoor restaurants, beach bars, street food areas with no power supply
- Scenic spots, parks, tourist areas, campsites & open‑air dining areas
- Petrol stations, highway service areas, parking lots & temporary food zones
- School canteens, factory outdoor areas, construction site dining halls
- Food courts in open malls, stadiums, fairgrounds & temporary events
- International airports, ports, railway stations outdoor waiting areas
![]()
![]()
![]()
![]()
