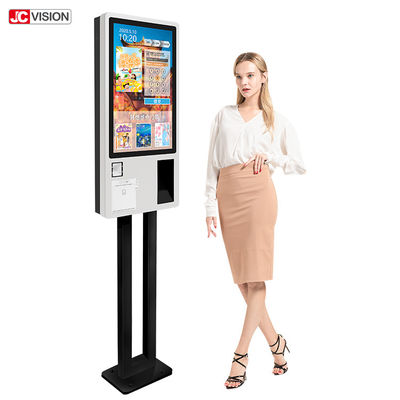

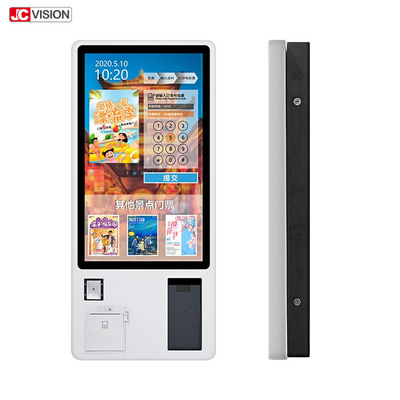

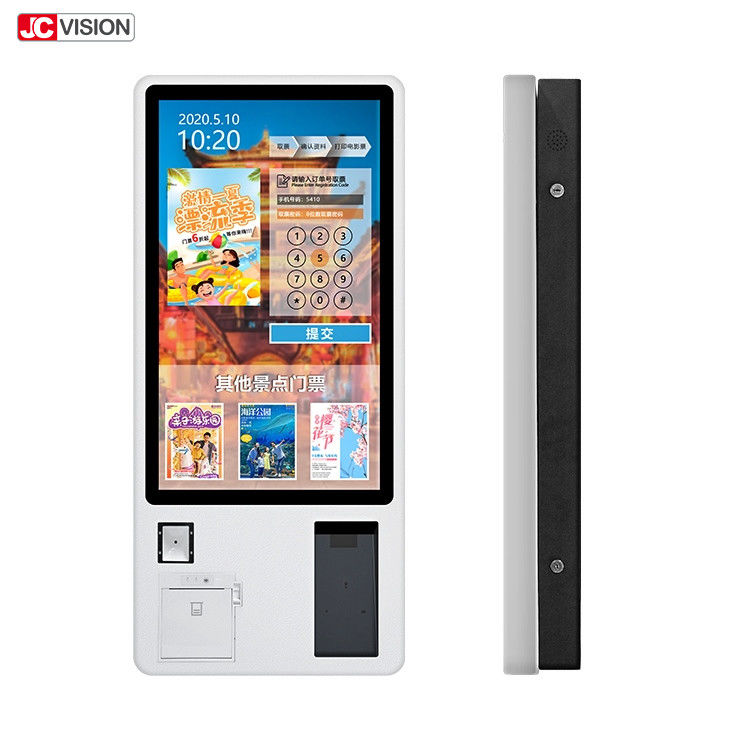

JCVISION 24-Inch Self Payment Kiosk with Wifi LANE Cable Connection
Product Details:
| Place of Origin: | China |
| Brand Name: | JCVIDION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negociation |
| Packaging Details: | as usual |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Model No.: | JC-SS240K | Panel Size: | 24" TFT-LCD Panel With LED Backlight |
|---|---|---|---|
| Display Area(mm)/mode: | 529.66mm(H)×303.16mm(V) 16:9 | Max Resolution: | 1920×1080 Full HD |
| Display Color: | 16.7M | Pixel Pitch(mm): | 0.51mm(H) X 0.51mm(W) |
| Brightness (nits): | 350cd/m2 | Contrast: | 1200:1 |
| Visual Angle: | 178°/178° | Response Time: | 5ms |
| Life(hrs): | >60,000(hrs) | Video Formats: | MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
| Audio Format: | Wave/MP3/WMA/AAC | Image Formats: | JPEG/BMP/TIFF/PNG/GIF |
| Image Resolution: | 480P/720P/1080P | Menu Language: | Chinese/English( Multiple Language Supported) |
| Power Supply: | AC100~240V 50 /60 HZ | Maximum Power Consumption: | ≦108W |
| Standby Power Consumption: | <5W | Working Temperature: | 0℃～50℃ |
| Storage Temperature: | -25℃～60℃ | Working Humidity: | 20%~85% |
| Storage Humidity: | 10%~90% | Color/appearance: | White Colour |
| 24%22 Body Dimension: | (height)888mm*(width)412*105.65mm | Main Material: | Metal Shell And 3mm Thickness Tempered Glass |
| Installation: | Wall Mounted /floor Standing | PC Mainboard: | 6th Generation I5/8G/128G SSD,WIFI |
| Connection To Internet: | Wifi & LANE Cable | Touch Screen: | 10 Dots Capacitive Touch Screen |

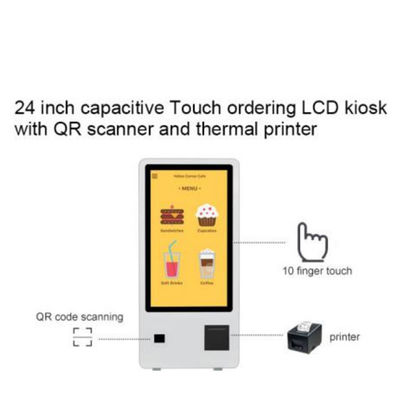

| Other Hardware: | Thermal Printer And QR Code Scanner,POS Holder | Accessory: | Power Cables, English Manual |
| Highlight: | Wifi Self Payment Kiosk,24 Inch Self Payment Kiosk,JCVISION Self Payment Kiosk |
||
Product Description
1. Hardware Specifications
-
Screen Size: 24-inch touchscreen (resistive/capacitive)
-
Display Resolution: Full HD (1920x1080) or higher
-
Processor: ARM-based or x86 (Intel/AMD)
-
Memory (RAM): 4GB – 8GB
-
Storage: 64GB – 256GB SSD
-
Operating System: Windows IoT, Android, Linux, or proprietary OS
-
Connectivity:
-
Wi-Fi / Ethernet
-
Cellular (4G/5G optional)
-
-
Peripherals:
-
Card Reader (EMV/NFC/RFID)
-
Barcode/QR Scanner
-
Receipt Printer
-
Cash Acceptor (Bill Validator)
-
Coin Dispenser (optional)
-
Biometric Scanner (optional)
-
-
Power Supply: 100-240V AC, 50-60Hz
-
Enclosure: Vandal-proof, IP54 or higher
2. Software & Payment Features
-
Payment Processing:
-
Credit/Debit Cards (EMV Chip & PIN)
-
Contactless (Apple Pay, Google Pay)
-
Mobile Wallets & QR Payments
-
Cash Acceptance
-
-
Supported Transactions:
-
Bill Payments (utilities, taxes)
-
Ticketing (transport, events)
-
Retail Purchases (POS integration)
-
Prepaid Top-ups (mobile, gift cards)
-
-
Security:
-
PCI-PTS 5.x or PCI DSS compliant
-
End-to-end encryption (P2PE)
-
Tamper-proof design
-
3. Deployment & Usage Data
-
Location Types:
-
Retail Stores
-
Shopping Malls
-
Public Transport Hubs
-
Government Offices
-
Hospitals & Universities
-
-
Average Transaction Time: 30-90 seconds
-
Uptime Reliability: 99.5%+ (with remote monitoring)
-
Maintenance: Cloud-based diagnostics & OTA updates
4. Cost & ROI Metrics
-
Unit Cost: 5,000 (varies by features)
-
Transaction Fees: 0.50 per transaction
-
Monthly Volume: 500–5,000 transactions (location-dependent)
-
Break-even Period: 6–18 months
5. Manufacturers & Providers
-
Leading Brands:
-
KIOSK Information Systems
-
NCR SelfServ
-
Diebold Nixdorf
-
Olea Kiosks
-
Posiflex
-
