JCVISION Self Service Ordering Kiosk 24 Inch for Wall Mounted/Floor Standing Installation
Product Details:
| Place of Origin: | China |
| Brand Name: | JCVIDION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negociation |
| Packaging Details: | as usual |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Model No.: | JC-SS240K | Panel Size: | 24" TFT-LCD Panel With LED Backlight |
|---|---|---|---|
| Display Area(mm)/mode: | 529.66mm(H)×303.16mm(V) 16:9 | Max Resolution: | 1920×1080 Full HD |
| Display Color: | 16.7M | Pixel Pitch(mm): | 0.51mm(H) X 0.51mm(W) |
| Brightness (nits): | 350cd/m2 | Contrast: | 1200:1 |
| Visual Angle: | 178°/178° | Response Time: | 5ms |
| Life(hrs): | >60,000(hrs) | Video Formats: | MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
| Audio Format: | Wave/MP3/WMA/AAC | Image Formats: | JPEG/BMP/TIFF/PNG/GIF |
| Image Resolution: | 480P/720P/1080P | Menu Language: | Chinese/English( Multiple Language Supported) |
| Power Supply: | AC100~240V 50 /60 HZ | Maximum Power Consumption: | ≦108W |
| Standby Power Consumption: | <5W | Working Temperature: | 0℃～50℃ |
| Storage Temperature: | -25℃～60℃ | Working Humidity: | 20%~85% |
| Storage Humidity: | 10%~90% | Color/appearance: | White Colour |
| 24%22 Body Dimension: | (height)888mm*(width)412*105.65mm | Main Material: | Metal Shell And 3mm Thickness Tempered Glass |
| Installation: | Wall Mounted /floor Standing | PC Mainboard: | 6th Generation I5/8G/128G SSD,WIFI |
| Connection To Internet: | Wifi & LANE Cable | Touch Screen: | 10 Dots Capacitive Touch Screen |
| Other Hardware: | Thermal Printer And QR Code Scanner,POS Holder | Accessory: | Power Cables, English Manual |
| Highlight: | JCVISION Self Service Ordering Kiosk,Wall Mounted Self Service Ordering Kiosk,24 Inch Self Service Ordering Kiosk |
||
Product Description

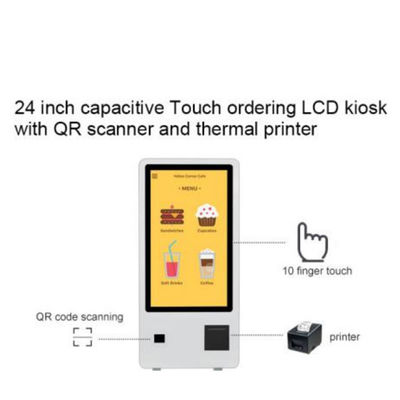

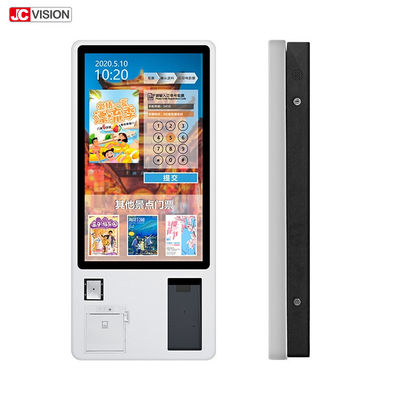

JCVISION Self Ordering 24 Inch Service Kiosks
24-Inch Ordering Kiosk Specification
1. Display:
- Screen Size: 24 inches
- Display Type: IPS LCD or Capacitive Touchscreen
- Resolution: 1920 x 1080 pixels (Full HD)
- Brightness: 250-350 nits
- Viewing Angle: 178° horizontal and vertical
2. Dimensions:
- Height: 60 inches (approx.)
- Width: 25 inches (approx.)
- Depth: 15 inches (approx.)
- Weight: 50-70 lbs (varies by manufacturer)
3. Hardware:
- Processor: Intel Core i5, i3, or equivalent ARM processor
- Memory (RAM): 4GB or 8GB DDR4
- Storage Options:
- SSD: 128GB, 256GB, or 512GB
- Optional external storage support
- Graphics: Integrated GPU (for advanced graphic capabilities)
4. Connectivity:
- Network:
- Wi-Fi: 802.11ac
- Ethernet: 10/100/1000 Mbps
- Ports:
- USB 3.0/2.0: Multiple ports for peripherals
- HDMI: for external display (if applicable)
- Audio Jack: for headphone use
- Payment Integration Ports:
- Optical/Infrared for card readers
- NFC for mobile payments
5. Software:
- Operating System:
- Windows 10/11, Android, or Linux (depending on model)
- Payment Processing Software: Compatible with major payment gateways
- User Interface: Customizable, with graphic templates available
6. User Interaction:
- Touchscreen Features:
- Multi-touch capability
- Gesture control
- Accessibility Features:
- Audio prompts
- Adjustable height options to accommodate wheelchair users
7. Additional Features:
- Printer: Optional thermal printer for receipts.
- Camera: Optional integrated camera for selfie check-in or age verification.
- Security: Built-in locks for access to internal components.
- Custom Branding: Ability to print or apply branding and marketing materials on the kiosk's exterior.
8. Power Supply:
- Input Voltage: 100-240V AC
- Power Consumption: 100-150 Watts (depending on features)
9. Compliance:
- Standards: ADA Compliance for accessibility
- Safety: UL, CE, or equivalent safety certifications
Want to Know more details about this product
