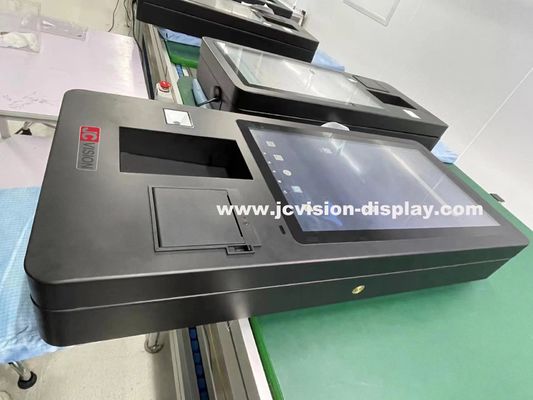

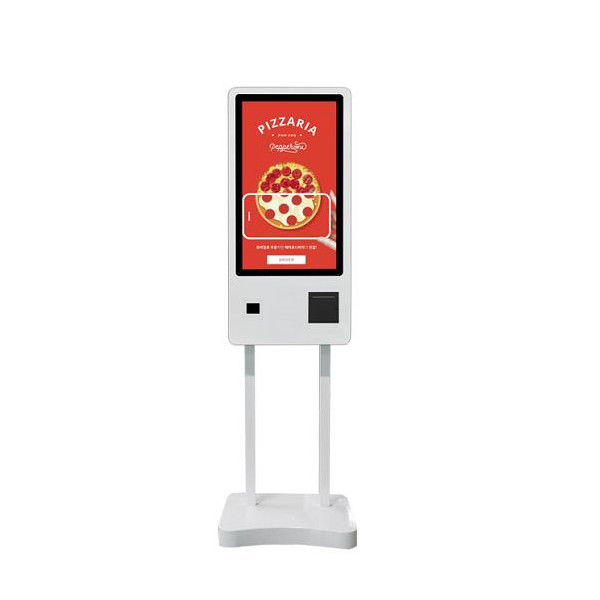

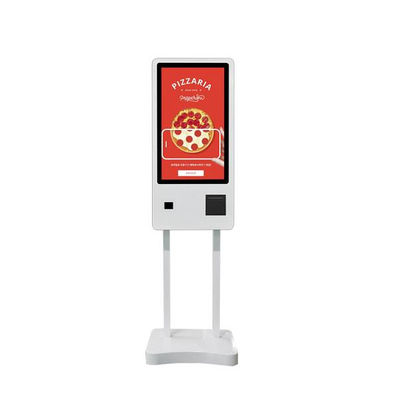

JCVISION 24inch Self Service Payment Kiosk Touch Screen Visual Angle 178°/178° Suitable for 0C～50C Environment
Product Details:
| Place of Origin: | China |
| Brand Name: | JCVIDION |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negociation |
| Packaging Details: | as usual |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 |
|
Detail Information |
|||
| Model No.: | JC-SS240K | Panel Size: | 24" TFT-LCD Panel With LED Backlight |
|---|---|---|---|
| Display Area(mm)/mode: | 529.66mm(H)×303.16mm(V) 16:9 | Max Resolution: | 1920×1080 Full HD |
| Display Color: | 16.7M | Pixel Pitch(mm): | 0.51mm(H) X 0.51mm(W) |
| Brightness (nits): | 350cd/m2 | Contrast: | 1200:1 |
| Visual Angle: | 178°/178° | Response Time: | 5ms |
| Life(hrs): | >60,000(hrs) | Video Formats: | MP4(AVI:DIVX/XVID),MPG2(DVD:VOB/MPG2), MPEG1 (VCD: DAT/MPG1) |
| Audio Format: | Wave/MP3/WMA/AAC | Image Formats: | JPEG/BMP/TIFF/PNG/GIF |
| Image Resolution: | 480P/720P/1080P | Menu Language: | Chinese/English( Multiple Language Supported) |
| Power Supply: | AC100~240V 50 /60 HZ | Maximum Power Consumption: | ≦108W |
| Standby Power Consumption: | <5W | Working Temperature: | 0℃～50℃ |
| Storage Temperature: | -25℃～60℃ | Working Humidity: | 20%~85% |
| Storage Humidity: | 10%~90% | Color/appearance: | White Colour |
| 24%22 Body Dimension: | (height)888mm*(width)412*105.65mm | Main Material: | Metal Shell And 3mm Thickness Tempered Glass |
| Installation: | Wall Mounted /floor Standing | PC Mainboard: | 6th Generation I5/8G/128G SSD,WIFI |
| Connection To Internet: | Wifi & LANE Cable | Touch Screen: | 10 Dots Capacitive Touch Screen |
| Other Hardware: | Thermal Printer And QR Code Scanner,POS Holder | Accessory: | Power Cables, English Manual |
| Highlight: | 24inch Self Service Payment Kiosk,Touch Screen Self Service Payment Kiosk,178°/178° Self Service Payment Kiosk |
||
Product Description
Remarks
Trade Terms: EXW Shenzhen
LEAD Time: 10days for sample bulk order to be discussed
Warranty: 3year
Packaging: Wooden box at extra Cost

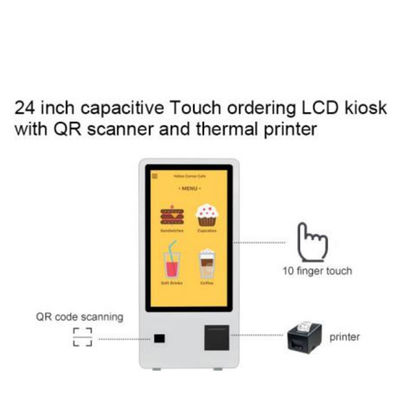

Hardware Features
| Feature | Description |
|---|---|
| Touch Screen | 24-inch capacitive multi-touch display for smooth, responsive interaction. |
| Display Resolution | Full HD (1920×1080) for sharp visuals. Some may support 4K. |
| Processor | Often Intel (i3/i5/i7) or ARM-based processors depending on OS. |
| Operating System | Windows, Android, or Linux, depending on deployment needs. |
| Printer | Built-in thermal receipt printer, typically 80mm width. |
| QR/Barcode Scanner | For scanning vouchers, tickets, or mobile payments. |
| NFC/RFID | Contactless card reading (e.g., transit cards, loyalty cards). |
| Card Payment Terminal | Integrated EMV-compliant reader (credit/debit cards, chip & pin, contactless). |
| Cashless Payment | Supports mobile wallets: Alipay, WeChat Pay, Apple Pay, Google Pay, etc. |
| Camera (Optional) | For face recognition or security. |
| Audio | Speakers and/or microphone for audio prompts or video calls. |
| Connectivity | Ethernet, Wi-Fi, Bluetooth, USB ports. Some may support 4G LTE. |
| Security | Lockable cabinet, tamper-proof design, privacy filter for the screen. |
