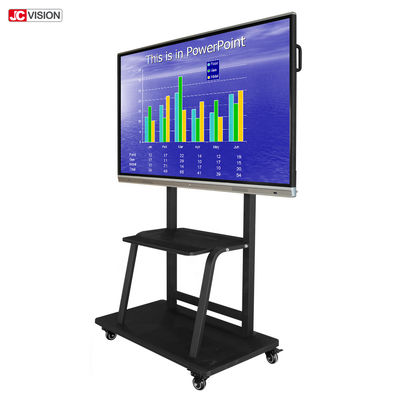

HDMI USB2.0 Education Ir Touch Screen 65 Inch Interactive Whiteboard
Product Details:
| Place of Origin: | Guangdong ,China |
| Brand Name: | JCVISION |
| Certification: | CE, FCC, RoHS |
| Model Number: | JC-T65K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiated |
| Packaging Details: | Carton and wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 2000 pcs/month |
|
Detail Information |
|||
| Cpu: | I3/i5/i7 Optional | Warranty: | 1 Year |
|---|---|---|---|
| Material: | Aluminum Alloy Frame | Viewing Angle: | 178°(H) / 178°(V) |
| Function: | Projector,writingboard,PC,TV | Interface: | USB2.0/3.0,USB/RS232/I2C,AC,USB,HDMI |
| Highlight: | HDMI Education Ir Touch Screen,USB2.0 Education Ir Touch Screen,65 Inch Portable Interactive Whiteboard |
||
Product Description
65 inch Infrared Touch Screen Intel i3/i5/i7 RAM 4G ROM 120G Interactive Smart White Board
Touch Screen Smart Board is an interactive TV, it built-in with LCD/LED and touch screen (and PC for optional). We use the most popular technology infrared touch to achieve interaction between users and the monitor.
All in one touch monitor is also a LCD whiteboard, use the LCD to instead of the projector for image presentation.
Connect with built-in or outer PC, it is a large touch PC, fingers to control and operate the PC to present advertisement, conference PPT, classroom courses, play movies and etc…
Specification:
Features of All in One Interactive Whiteboard
♦ 10 points IR touch screen
♦ Comes with multi-funtion software
♦ Comes with WIFI
♦ Equiped with multiple signal interfaces
♦ Aluminum alloy body with front access touch frame module
♦ Intelligent black board detecting features (Once black board activated, LED backlit off)
♦ Available in a wide range of sizes: 55”, 65”, 75”, 86” and 98”
Product Details:
|
Screen size
|
55’’/65’’75’’/86’’/98’’
|
|
CPU
|
intel i3; (intel i5/i7 option)
|
|
RAM
|
4GB RAM; (8GB/16GB option)
|
|
Memory
|
120GB SSD;(240GB SSD/1TB HDD option)
|
|
Windows OS
|
Windows 7/10 without license( license option)
|
|
(Android OS option)
|
MSD 648 Quad core
|
|
Android
|
Android 6.0
|
|
Touch Technology
|
Infrared touch
|
|
Touch points
|
10/20 points
|
|
Input way
|
finger touch,pen,or any opaque object
|
|
Touch life times
|
Over 60,000,000 times
|
|
Touch response speed
|
8ms
|
|
Display Type
|
LED
|
|
Resolution
|
1920*1080 FHD (3840*2160 UHD option)
|
|
Brightness
|
400(cd/m2)
|
|
Ratio of display
|
16:09
|
|
Best viewing angle
|
up:89 down:89; left:89 right:89
|
|
Max. viewing angle
|
178°
|
|
Contrast ratio
|
5000:1TYP
|
|
Glass type
|
4mm tempered glass
|
|
Glass transmittance
|
95%
|
|
Front Buttons:
|
|
|
PC power button*1;Volume up*1;Volume down *1;Memu*1;Power on/off*1
|
|
|
Front ports:
|
|
|
HDMI*1;Touch out*1;MV in*1;USB2.0*3
|
|
|
Back ports(Ⅰ):
|
|
|
USB2.0 type B*1;USB2.0*2;HDMI*1;VGA*1
|
|
|
Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC)
|
|
|
DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1
|
|
|
Power of display
|
178W
|
|
Colors
|
16.7M
|
|
Life time
|
60,000h
|
|
Working voltage
|
50-60HZ 100-250V
|
|
Standby power
|
3W
|
|
Working temperature
|
0~45℃
|
|
Storage temperature
|
-20℃~60℃
|
|
Working humidity
|
5%-90%
|
|
Power of speaker
|
8Ω10W*2
|
|
Frame material
|
Alloy
|
|
Accessories
|
Wall bracket/movable floor stand/pen/remote control/WIFI antenna
|
|
Warranty
|
12 months
|
|
Package
|
30mm thickness Honeycomb box
|
