55 Inch LCD Video Display , 500nit Zero Bezel Video Wall For Business Center
Product Details:
| Place of Origin: | SHENZHEN, CHINA |
| Brand Name: | JCVISION |
| Certification: | CE, Rohs, FCC |
| Model Number: | JC-VW460 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Pixel Pitch: | 0.53025(H)*0.53025(V) | Contrast Ratio: | 3500:1 |
|---|---|---|---|
| Viewing Angle: | 178° | Brightness: | 500cd/m2 |
| Response Time: | 5ms | Input Voltage: | 100-240VAC 50/60Hz |
| Working Hours: | > 50000 Hours | Bezel: | ≤3.5mm |
| Highlight: | 5ms LCD Video Display,500nit LCD Video Display,Zero Bezel Video Wall |
||
Product Description

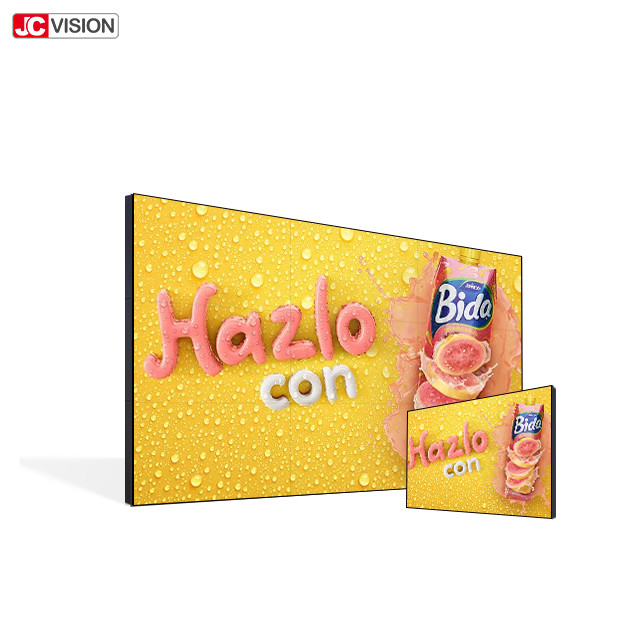

JCVISION 55 Inch LCD Video Wall 3.5mm Bezel 500nit For For Business Center And Shopping Mall
Features:
1. JCVISION LCD video wall
2. 178° super wide angle
3. Ultra-narrow border design
4. Safe and energy saving
5. Optional touch function
6. Support multi-signals
7. Various splicing screen array
8. Rich stitching methods
Specification
|
Panel
|
Size
|
46"
|
49"
|
55"
|
65"
|
|
Aspect ratio
|
16:9
|
16:9
|
16:9
|
16:9
|
|
|
Resolution ratio
|
1920×1080
|
1920×1080
|
1920×1080
|
3840×2160
|
|
|
Brightness
(cd/㎡)
|
450/500/700
|
500/700
|
500/700/800
|
500/700
|
|
|
Bezel(mm)
|
1.8/3.5/5.3
|
1.8/3.5
|
0.88/1.8/3.5
|
3.5
|
|
|
Active display area(W×H)
|
1018.08×572.67
|
1073.8×604.00
|
1209.60×680.40
|
1428.48×803.52
|
|
|
Backlight type
|
LED
|
LED
|
LED
|
LED
|
|
|
Contrast ratio
|
3000:1/3500:1
|
1300:1/1400:1
|
1400:1/3500:1
|
4000:1
|
|
|
Viewing angle
|
178°(H/V)
|
178°(H/V)
|
178°(H/V)
|
178°(H/V)
|
|
|
Color depth
|
16.7M
|
16.7M
|
16.7M
|
16.7M
|
|
|
Panel
refresh rate
|
60Hz
|
60Hz
|
60Hz
|
60Hz
|
|
|
Response time
|
8ms
|
8ms
|
8ms
|
8ms
|
|
|
Panel life time
|
60,000h
|
60,000h
|
60,000h
|
60,000h
|
|
|
Port
|
Signal input
|
DVI/HDMI/VGA/CVBS/RS232,
(Optional addition:SDI/DP/USB)
|
DVI/HDMI/DP/VGA/CVBS/USB/RS232
|
||
|
Signal output
|
CVBS/RS232,(Optional addition:DVI/HDMI)
|
RS232
|
|||
|
Operating conditions
|
Consumption
|
Max.145/195W
|
Max.165/185W
|
Max.190/280W
|
Max.305/390W
|
|
Voltage
|
100~240VAC 50/60Hz
|
||||
|
Operating temperature
|
0~50℃
|
0~50℃
|
0~50℃
|
0~50℃
|
|
|
Operating humidity
|
10~90%
|
10~90%
|
10~90%
|
10~90%
|
|
|
Whole
machine
|
Color
|
black
|
black
|
black
|
black
|
|
Dimension
(W×H)mm |
1020.02×574.61
|
1075.58×605.80
|
1210.51×681.22
|
1432.58×807.62
|
|
|
1022.20×576.80
|
1077.60×607.80
|
1211.50×682.30
|
|
||
|
1023.98×578.57
|
|
1213.50×684.30
|
|
||
|
Weight
|
24±1Kg
|
25±1Kg
|
37±1Kg
|
42±1Kg
|
|
|
Optional config-uration
|
4K input
|
DVI/HDMI/DP/VGA/CVBS/USB/RS232
|
|||
|
Display Uniformity
|
Input:DVI/HDMI/DP/VGA/RS232；
Output:DP/RS232
|
||||
|
Touching Function
|
Infrared touching interactive system
|
||||
