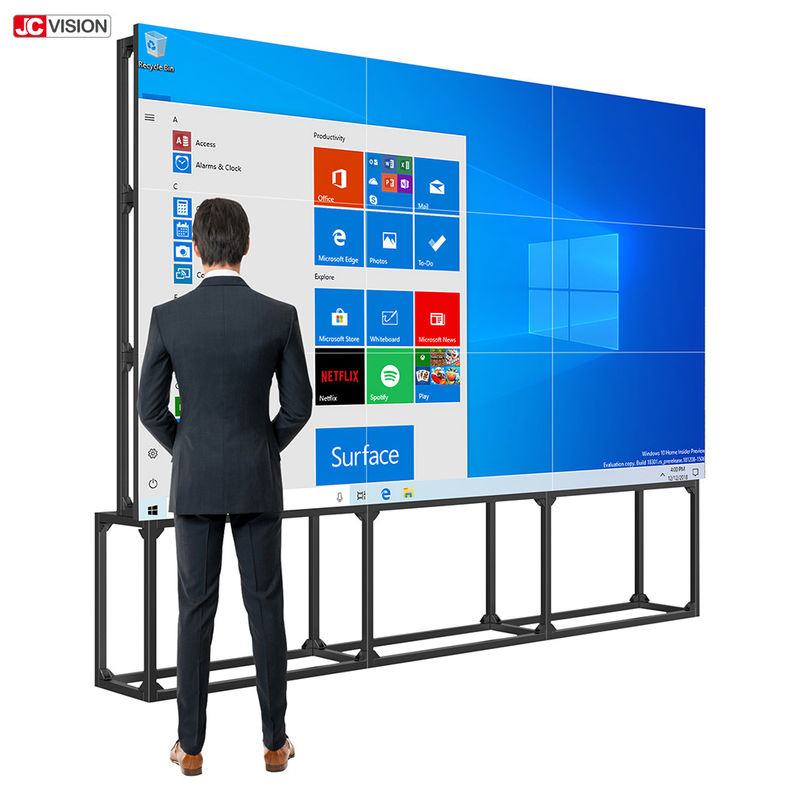

4K Samsung LG LCD Video Wall Display 3x3 LCD Advertising Video Wall
Product Details:
Place of Origin: | SHENZHEN, CHINA |
Brand Name: | JCVISION |
Certification: | CE, Rohs, FCC |
Model Number: | JC-VW460 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1unit |
---|---|
Price: | Negotiable |
Packaging Details: | wooden box |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T |
Supply Ability: | 1000 Unit/Units per Month |
Detail Information |
|||
Pixel Pitch: | 0.248(H)x0.745(V)mm | Contrast Ratio: | 4000:1 |
---|---|---|---|
Viewing Angle: | 89/89/89/89 | Brightness: | 500cd/m2 |
Response Time: | 8ms | Input Voltage: | AC100~240V 50/60Hz |
Ultra-narrow Border: | 0.88/1.8/3.5/5.5mm (Option) | Three External Connections: | Ctions: Splitter/matrix/processor |
Highlight: | LG LCD Video Wall Display,3x3 LCD Video Wall Display,3x3 Advertising Video Wall |
Product Description
JCVISION 4K Samsung LG Videowall Mount Bracket Panel 3x3 Video Wall Controller Lcd Video Wall
Features
1. Full hardware architecture, professional splicing chip design without CPU and operating system
2. Multi-line parallel processing with powerful processing functions;
3. Integrated multiple video signal sources
4. Can open the underlying communication protocol, which is convenient for users to flexibly adopt third-party central control, system or self-programmed software to construct a large screen engineering system
5. Embedded firmware intelligent upgrade system.
6. Narrow border full metal frame design
7. Fully silent industrial fan with automatic temperature switch
8. With 3D noise reduction, 3D filtering, 3D deinterlacing
9. Comes with a large screen splicing piece, a healthy splicing, easy to use
10. With energy saving, environmental protection, no radiation, support 7 * 24 hours of uninterrupted work, adapt to a variety of working environments that need to be turned on for a long time
11. Uniform brightness, stable image, no flicker, no distortion
12. Applicable to: commercial institutions, large shopping malls, specialty stores, franchise stores, hypermarkets, star hotels, restaurants, travel agencies, drug stores, etc.
Specification
Model
|
Samsung 46 inch 3.5mm Video wall screen specification
|
|||
Contrast
|
3000:1
|
|||
Display color
|
16.7M
|
|||
Response time
|
8ms
|
|||
Viewing angle
|
89/89/89/89(Typ)
|
|||
working frequency
|
60HZ
|
|||
Stitching
|
3.5mm
|
|||
USB input
|
(usb * 1) can be upgraded to support video picture media playback
|
|||
HDTV input
|
(HDTV * 1) Supports 1920 * 1080 @ 60hz signal input, backward compatible
with 4k, customization required
|
|||
VGA input
|
(vga * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility
|
|||
DVI input
|
(dvi * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility
4k needs customization |
|||
BNC input
|
(bnc * 1) Support ntsc pal and other formats
|
|||
Remote Receive Input
|
(debug * 1) Remote control signal transmission
|
|||
RJ45 input
|
(rj45 * 1) rs232 signal input
|
|||
RJ45 output
|
(rj45 * 2) rs232 signal output
|
|||
BNC output
|
(bnc * 1) Support ntsc pal and other formats
|
|||
Show diagonal
|
AC220V 50/60Hz
|
|||
Dimensions
|
<=240W
|
|||
Display area
|
3W
|
|||
Zoom
|
0~50℃
|
|||
Panel type
|
-20~65℃
|
|||
Resolution
|
Simplified Chinese, Traditional Chinese, English and other languages
|
|||
Dot Pitch
|
18KG
|
|||
brightness
|
Wall-mounted, embedded, floor-standing, front maintenance, cabinet
|
Model
|
Samsung 55 inch 1.7mm Video Wall Screen Specification
|
|||
Show diagonal
|
55 "
|
|||
Outline size
|
1211.54(W)*682.34(H)*118.2(D)mm
|
|||
Display area
|
1209.6(W)*680.4(H)mm
|
|||
display scale
|
LED backlight
|
|||
Resolving power
|
1920(RGB)X1080,FHD
|
|||
Point spacing
|
0.210(H)*0.630(V)
|
|||
brightness
|
500CD/M
|
|||
contrast ratio
|
4000:1
|
|||
Display color
|
16.7M
|
|||
response time
|
8ms
|
|||
viewing angle
|
89/89/89/89(Typ)
|
|||
working frequency
|
60HZ
|
|||
Splicing joint
|
1.7mm
|
|||
USB input
|
(USB * 1) upgradeable video picture media playback
|
|||
HDTV input
|
(HDTV * 1) support 1920 * 1080 @ 60Hz signal input, downward
compatible 4K, customized
|
|||
VGA input
|
(VGA * 1) support 1920 * 1080 @ 60Hz signal input and downward
compatibility
|
|||
DVI input
|
(DVI * 1) support 1920 * 1080 @ 60Hz signal input and downward
compatibility 4K needs customization
|
|||
BNC input
|
(BNC * 1) support NTSC pal and other systems
|
|||
Remote control
receiving input
|
(debug * 1) remote control signal transmission
|
|||
RJ45 input
|
(RJ45 * 1) RS232 signal input
|
|||
RJ45 output
|
(RJ45 * 2) RS232 signal output
|
|||
BNC output
|
(BNC * 1) support NTSC pal and other systems
|
|||
working voltage
|
AC220V 50/60Hz
|
|||
Product power
consumption
|
Less than 240W
|
|||
standby power
|
3W
|
|||
working temperature
|
0~ 50 C
|
|||
Storage temperature
|
-20~ 65 C
|
|||
Menu language
|
Simplified Chinese, traditional Chinese, English and other multi-national
languages
|
|||
Installation mode
|
Wall mounted, embedded, floor standing, front maintenance, cabinet
|
Model
|
LG 49 inch 3.5MM splicing unit specifications
|
|||
Diagonal display
|
49 "
|
|||
Display area
|
1073.8 (W) *604.0(H)mm
|
|||
Zoom
|
led Backlight
|
|||
Panel Type
|
LED backlight
|
|||
Resolution
|
1920(RGB)X1080, FHD
|
|||
Spacing
|
0.1864 (H) * 0.5593 (V)
|
|||
brightness
|
450CD / M²
|
|||
Contrast
|
1300: 1
|
|||
Color display
|
16.7M
|
|||
response time
|
8ms
|
|||
Viewing angle
|
89/89/89/89(Typ)
|
|||
working frequency
|
60HZ
|
|||
Patchwork stitching
|
3.5mm
|
|||
USB input
|
(USB * 1) can be upgraded media player supports video pictures
|
|||
HDTV input
|
(HDTV * 1) * Support 1920 1080 @ 60HZ signal input is backward
compatible with 4K be customized
|
|||
VGA Entry
|
(VGA * 1) * Support 1920 1080 @ 60HZ signal inputs can be
backward compatible
|
|||
DVI Entry
|
(DVI * 1) * Support 1920 1080 @ 60HZ signal inputs can be backward
compatible 4K be customized
|
|||
BNC Entry
|
(BNC * 1)And other standard support NTSC PAL
|
|||
Remote control receiver input
|
(DEBUG * 1) the remote control signal transmission
|
|||
RJ45 input
|
(RJ45 * 1) RS232 input signal
|
|||
RJ45 output
|
(RJ45 * 2) RS232 signal output
|
|||
BNC output
|
(BNC * 1)And other standard support NTSC PAL
|
|||
Operating Voltage
|
AC220V 50 / 60Hz
|
|||
Power consumption
|
≤240W
|
|||
Standby power consumption
|
3W
|
|||
Operating temperature
|
0~ 50 C
|
|||
storage temperature
|
-20~ 65 C
|
|||
Menu language
|
Simplified Chinese, Traditional Chinese, English and other languages
|
|||
Installation mode
|
Wall-mounted, embedded, floor, before the maintenance, cabinet
|
