BDG Platform 0.4mm Nozzle Smart 3D Printer FDM JCVISION
Product Details:
| Place of Origin: | SHENZHEN, CHINA |
| Brand Name: | JCVISION |
| Certification: | CE/CCC/FCC/ROHS/ISO9001 |
| Model Number: | JC-SP198 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Unit/Units per Month |
|
Detail Information |
|||
| Production Capacity: | 10000 Units/month | Dimension(L*W*H): | 431*370*423mm |
|---|---|---|---|
| Voltage: | AC 110-220 V | Weight: | 9 Kg |
| Plate Type: | FDM 3D Printing | Print Technology: | FDM (Fused Deposition) Impresora 3D |
| Nozzle Diameter: | 0.4mm (Single Nozzle) | Layer Thickness: | 0.1-0.3mm |
| Print Input: | SD Card, U Disk | Slicer Software: | Cura, Simplify3D, Slic3r, JGcreat |
| Color & Page: | Single Color | Hot Bed Material: | Black Diamond Glass |
| Print Speed: | 10-150mm/s | Filament Supported: | PLA, ABS, TPU, Wood |
| File Format: | STL, OBJ, G-Code | Computer OS: | Windows, XP, Mac |
| High Light: | 0.4mm Nozzle Smart 3D Printer,BDG Platform Smart 3D Printer,FDM Desktop 3d Printer |
||
Product Description
JCVISION 8''x8''x8'' 3D Smart Personalized Printer Mini 3D printing machine
Product Features:
1. Elegant Design: Light industry frame design, terseness but uniquness.
2. BDG Heated Platform: Easy removal of the printed parts, say farewell to masking tapes.
3. Unique gapless feeding system: Load filament smoothly and efficiently to print excellent models.
4. Filament Sensor: Auto warning for filament shortage or breakage. An Intelligent reminder to help you save time and filaments.
5. Easy to Assemble: Come with the frame and the Y-axis box, only 1 minute to set up after unboxing and max 30 mins to print your 1st sample. An ideal option for budget-limited buyers, DIY creators and home use.

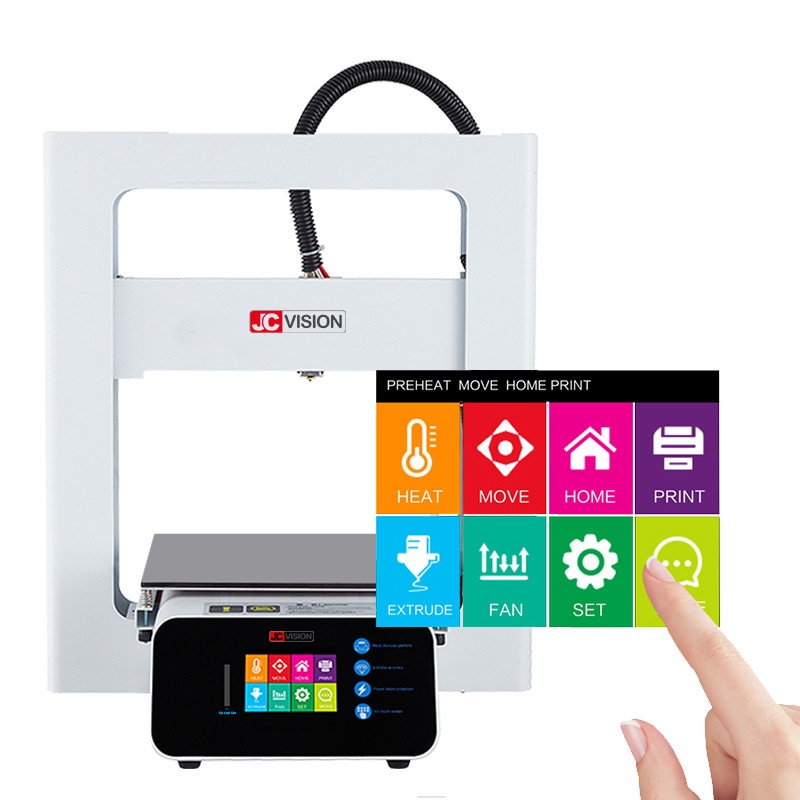

6. Intellective large color touch screen: Easy to set printing parameters, a better 3D printing experience with 2.8 inches color touch screen and semi-automatic leveling control.
7. Power Resume Printing: Resume from unexpected power loss, one click to continue and no longer to worry about re-printing and long-time printing.
Specification:
|
Printing Technology
|
FDM (Fused Deposition Modeling)
|
|
Print Size
|
205*205*205 mm
|
|
Printing Speed
|
10~150mm/s
|
|
Layer Thickness
|
0.05-0.3 mm
|
|
Filament Diameter
|
1.75 mm
|
|
Control Panel
|
2.8'' Color Touch Screen
|
|
Nozzle Diameter
|
0.4 mm (Single Nozzle)
|
|
Pause Printing
|
Yes
|
|
Resume Print After Power Failure
|
Yes
|
|
Filament Run-out Detection
|
Yes
|
|
Dimension
|
431*370*423 mm
|
|
File Format Supported
|
STL, OBJ, G-Code
|
|
Gross Weight
|
11.5 kg
|
|
Printing Filament
|
PLA, ABS, TPU, Wood, etc.
|
|
Print Input
|
U Disk, USB
|
|
Software Language
|
Multi-language
|
|
Input Voltage
|
AC110~220V 180 W
|
|
Computer OS
|
Windows, XP, Lunis, Mac
|
|
Slicer Software
|
Cura, JGcreat (64 bit)
|
